ZQ300 Series Mobile Printers

攜帶型條碼標籤印表機

取代目前的iMZ320

使用ZQ320,您可以選擇兩種款式:收據(Receipt) 與 標籤/收據(Label/Receipt)。Zebra 提供最多的充電選項以實現最大的靈活性,以滿足您業務需求的可擴展性 - 包括大型或小型部署,車充和家庭充電解決方案。

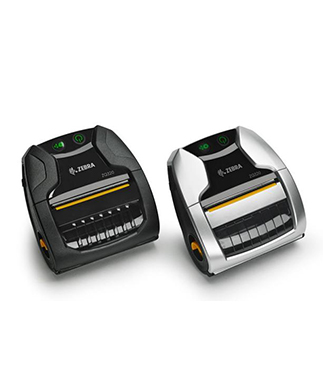

  • ZQ320 Mobile Label and Receipt Printer:INSIDE-THE-FOUR-WALLS(室內,白色)
  • ZQ320 Mobile Receipt Printer:OUTSIDE-THE-FOUR-WALLS(室外,黑色)

熱感

72毫米/2.83英寸

最高列印速度:4 ips(100 mm/s)

2280mAh 7.2V PowerPrecision+電池

分辨率:203 dpi(8 dots/mm)

支持802.11ac/802.11ac/藍牙BLE4.0

物理特性
尺寸(WxHxH) 130 × 117.7 × 49.5 mm
重量 0.43 kg
作業系統 Link-OS®
列印解析度 203 dpi(8 dots/mm)
內存 128MB RAM/256MB Flash (48MB 客戶可使用)
程式設計語言 CPCL / ZPL (ZPL與其他Zebra列印機兼容)
電池 Li-Ion 2280mAh, 7.2V, PowerPrecision+
性能特性
處理器(CPU) 400 MHz 32-bit ARM® processor
記憶體 512 MB 快閃記憶體,256 MB RAM
列印規格 • 最大寬度:72 mm
• 速度:高達 4 ips(100 mm/s)
感應紙特性 • 最大感應紙寬度:80 mm ± 0.75 mm(可支援76 mm ± 0.75 mm)
• 最大感應紙卷外徑:40 mm
• 感應紙厚度:0.06 ~ 0.16 mm
• 最小收據長度:12.5 mm
用戶環境
跌落/翻滾測試(MIL STD 810) 1.5m / 500次,1m
環境密封 IP54
作業溫度 -15°C ~ +50°C
儲存溫度 -20°C ~ +60°C
溼度 10% ~ 90%
條碼/字體
一維 Codabar (NW-7), Code 39, Code 93, Code 128, EAN-8,EAN-13, 2 and 5 digit add-on, Interleaved 2-of-5, UCC/EAN 128, UPC-A, UPC-E,2 and 5 digit add-on
二維 2D Barcodes: Aztec Code, Data Matrix, GS1/DataBar™ (RSS)family, MaxiCode, MicroPDF417, PDF417, QR Code, TLC 39
CPCL/ZPL(Scalable) Latin 9, Arabic, Cryillic, Hebrew, SourceCodePro,NotoMono (CJK), Hans (CJK), Thai (Angsana)
CPCL (Bitmap) Simplified CN: 24x24 Msung, 16x16 SimSun, Trad CN:24x24 Mkai, 16x16 New Sans MT, Vietnamese: 16x16 Utah,Japanese 16x16 MS Gothic
ZPL 標準字體:25Bitmaped,平滑可擴展(CG Triumvirate™Bold Condensed),可擴展的SourceCodePro,可擴展的NotoMono(CJK),可擴展的Hans(CJK),可選字體:可下載的位圖和可縮放字體,*包含Agfa Monotype Corporation的UFST®
通訊
藍芽 Label/Receipt:Dual Radio (802.11ac + BT BR/EDR LE4.0)
Receipt:BR/EDR, LE 4.0
USB Client, Type- C™ connector
NFC Passive NFC tag
支援Host OS Windows compatibility: (CE .NET, Pocket PC, WindowsMobile 2002, Windows Mobile 2003 SE, Windows XP,2000 and NT via Zebra Windows printer driver and/or ourMobile SDK controls and other applications) Android 2.3,4.0, 4.1, iOS 5, iOS 6, iOS 7, iOS 10
WLAN 802.11ac
安全 WEP, TKIP, AES encryption, WPA, WPA2, 801.1X (with WEP, WPA or WPA2) EAP- FAST, EAP- TTLS, EAP-TLS, PEAP, LEAP
WLAN Features Supported 802.11r, 802.11d, 802.11i, Simultaneous WAN & BT 4.0,Fast roaming using Pairwise Master Key (PMK) caching,Opportunistic Key Caching (OKC), or EAP Fast Session resumption, Support for Ad Hoc mode
Internet Protocols over WLAN UDP/TCP, DHCP/BootP, FTP/Mirror, HTTP, SMTP / POP3,Telnet, LPD, SNMP
