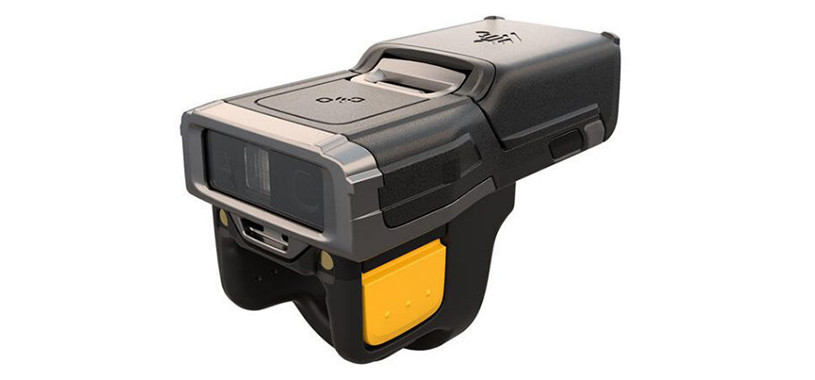

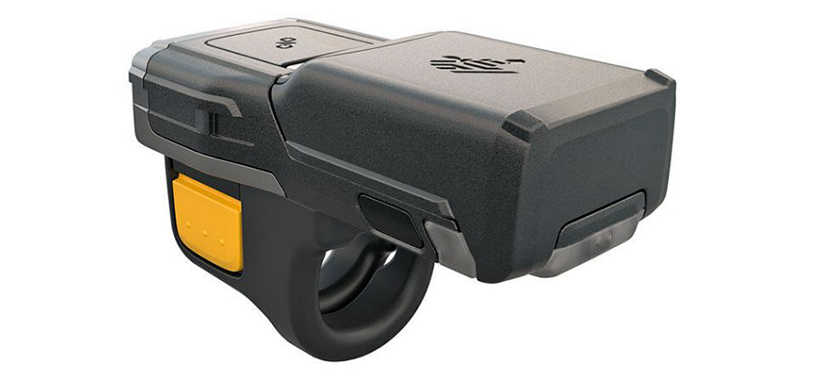

指環式無線掃描器
體積小,幾乎沒有重量——只有其前身 RS6000 尺寸和重量的一半。
* 可搭配穿戴式行動電腦 WT6300
五種可互換的佩戴方式:可適合右手和左手進行調整,單指支架可配備單扳機或雙扳機。雙手通用的手背支架適合在狹小空間內使用。可伸縮的掛繩可以繫在腰帶上或掛在脖子上。
高級掃描範圍:能夠掃描手上和貨架頂層貨架上物品的條碼——從5.08厘米到12.2 米。
即時配對——只需點擊即可:借助 NFC,只需輕觸支持NFC的Zebra設備,RS6100無需掃描配對條碼或打開藍牙設置即可識別和選擇設備。
模組式按鍵組件防止細菌傳播:模組式的兩件式設計將觸發器組件與掃描儀主體分開。
可拆卸和可更換電池:配備可拆卸和可充電電池,無需停止使用RS6100進行充電,從而最大限度地提高價值和投資回報。
耐用設計 :堅固耐用,可在任何地方工作——包括冷凍室,6英寸/1.8m 耐摔規格、IP65 密封。
尺寸(LxWxD) | 66.6 mm L x 32.7 mm W x 21 mm D |
重量 | 標準電池: 70g ; 高容量電池: 76g |
電池 | PowerPrecision+ 標準電池:480mAh ; 高容量電池: 735mAh |
解析度 | 2688 x 1520 pixels |
Roll/Pitch/Skew | 360°/±60°/±60° |
Field of View | 水平:37° / 垂直:21.4° |
Aiming Element | 515 nm Laser |
1D | Code 39, Code 128, Code 93, Codebar/NW7, Code 11, MSI, UPC/EAN, I 2 of 5, Korean 3 of 5, GSI DataBar, Base 32 (Italian Pharma) |
2D | PDF417, Micro PDF417, Composite Codes, TLC-39, Aztec, DataMatrix, MaxiCode, QR Code, Micro QR, Chinese Sensible (Han Xin), Postal Codes |
OCR Symbologies | OCR-A, OCR-B |
Scanner | SE55 1D/2D Advanced Range Scan Engine with IntelliFocusTM technology |
Interface | Bluetooth: Class 1 and 2, Bluetooth v5.2 with Bluetooth Low Energy (BLE) LED: 4 RGB LEDs located at the back side of the device (programmable) Beeper: Up to 85 dBA @ 10 cm from the back of the device beeper port Scan Triggering:Manual ambidextrous trigger |
跌落測試 | 1.8m 跌落至水泥地面 | ||||||||||||||||||||||||||||
環境密封 | IEC 60529: IP65 | ||||||||||||||||||||||||||||
作業溫度 | -30° ~ +50℃ | ||||||||||||||||||||||||||||
儲存溫度 | -40° ~ +60℃ | ||||||||||||||||||||||||||||
溼度 | 5% ~ 95% | ||||||||||||||||||||||||||||
Decode Ranges (Typical) |
|
RS6100 英文型錄 |
