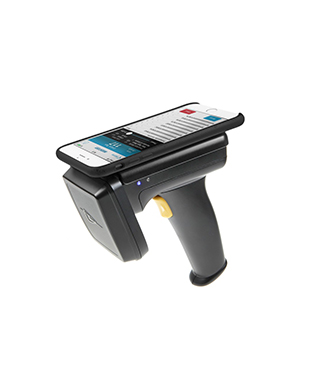

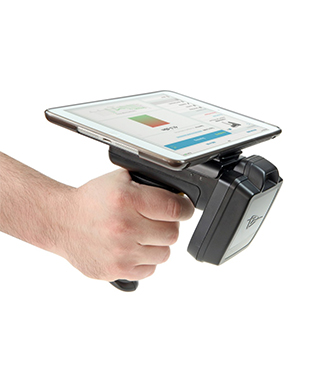

1128 Bluetooth ® UHF RFID Reader
藍芽UHF RFID讀取器
新的1128藍牙®UHF RFID讀取器被設計為讀取和寫入到EPC Class 1 Gen 2 (ISO18000-6C)，搭配藍牙®無線技術，憑藉Impinj R2000核心處理器和高性能天線，為用戶提供當今市場上最高水平的讀取器。
1128-EU-BT-UHF-A1 - 1128 Bluetooth® UHF RFID reader ( ETSI variant )
1128-US-BT-UHF-A1 - 1128 Bluetooth® UHF RFID reader ( FCC variant )
1128-EU-BT-UHF-IMG - 1128 Bluetooth® UHF RFID reader( ETSI variant )
1128-US-BT-UHF-IMG - 1128 Bluetooth® UHF RFID reader( FCC variant )

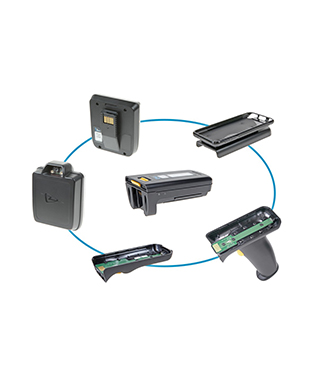

Grip handle options
1128-SLG - Slimline Grip attachment
Device mount options
1128-MNT-UNI - Accessory Mount
實體特性
| 尺寸(LxWxH) | 16 × 7.7 × 16.9 cm(Trigger handle) 16 x 7.7 x 9.7 cm(Slimline grip) |
| 電池 | 可拆卸 3.7V 2400mAh鋰電池 |
| 重量 | 380克(含電池&握柄) |
效能特性
| RFID引擎 | TSL custom module with embedded Impinj R2000 |
| 通訊協議 | TSL ABC (Parameterised ASCII command set) Impinj binary |
| 內存 | 支持高達 32GB Micro SD/SDHC |
| 兼容的主機設備（藍牙®） | Android, iOS, Windows CE, Windows Mobile 5/6.1/6.5 or Windows XP/Vista/7. Host device must haveBluetooth® functionality |
| 兼容的主機設備（USB） | Any USB host with FTDI VCP driver support (Windows, Linux, Mac, Android) |
使用環境
| 環境密封 | IP54 |
| 作業溫度 | -20°C ~ +60°C |
| 儲存溫度 | -40°C ~ +70℃ |
| 跌落規格 | 多次 1.2m 跌落至水泥地面 |
| 翻滾 | 室溫下，5000次 0.5mm 翻滾（1000次循環） |
RFID性能
| 支持的標準 | EPC Class 1 Gen 2 |
| 讀取範圍 | 可達 4m |
| 寫入範圍 | 可達 1.22m |
| Field | 150-degree forward facing (approx.) measured from front of device |
| 天線 | Detachable, Circularly Polarized with optional 2D scanner |
| 天線選項 | High Performance CP High Performance CP with 2D Imager Custom antennas available |
條碼掃描
| Imager | Symbol SE4500 2D imager | ||||||||||||
| 解析度 | 752 x 480 pixels | ||||||||||||
| Field of View | H: 40° / V: 25° | ||||||||||||
| 焦距 | SR: 8 in DL: 5.3 in HD: 2.9 in |
||||||||||||
| Aiming LED (VLD) | 655 ±10nm Laser | ||||||||||||
| 照明元件 | 625 ±5nm LEDs (2x) | ||||||||||||
| Print Contrast | 最低25％ | ||||||||||||
| 條碼支持 |
1D: All major codes 2D: PDF417, MicroPDF417, Composite, RSS, TLC-39, Datamatrix, QR code, Micro QR code, Aztec, MaxiCode Postal Codes: US PostNet, US Planet, UK Postal, Australian Postal, Japan Postal Dutch Postal (KIX) |
||||||||||||
| 範圍 |
|
藍牙®無線技術
| 藍牙 | Bluetooth® Version 2.1 SPP and Apple iApp 或 Bluetooth® HID (configurable) |
| 藍芽類別 | Class 2 |
| 藍牙範圍 | 10m |
| 藍牙配對 | PIN, Simple Secure Pairing, NFC OOB Pairing |
比較表
 |
 |
|||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 項目 | 1128 | 1153 | ||||||||||||
| 尺寸(LxWxH) | 16 x 7.7 x 16.9 cm(Trigger handle) 16 x 7.7 x 9.7 cm(Slimline grip) |
10.2 x 5.5 x 5.6 cm | ||||||||||||
| 重量 | 380 g(含電池與Trigger handle) | 157 g | ||||||||||||
| 電池 | 4.2V 2200mAh,8.4W/hrs | 3.7V 1130mAh,4.2W/hrs | ||||||||||||
| User input | Trigger button | |||||||||||||
| 記憶體 | 可支援 32GB Micro SD/SDHD | |||||||||||||
| 通訊協議 | TSL® ASCII 2.0 parameterised command set | |||||||||||||
| 運作溫度 | -20°C ~ +60°C | |||||||||||||
| 儲存溫度 | -40°C ~ +70°C | |||||||||||||
| 跌落測試 | 1.2m | |||||||||||||
| 密封 | IP54 | |||||||||||||
| RFID引擎 | EPC Class 1 Gen 2 | AMS AS3993 based | ||||||||||||
| RFID支援標準 | EPC Class 1 Gen 2 | |||||||||||||
| 標準讀取距離 | 高達 4m | 高達 2m | ||||||||||||
| 標準寫入距離 | 高達1.22m | 高達 1m | ||||||||||||
| Field | 150° forward facing (approx.) | |||||||||||||
| 天線 | Detachable, Circularly Polarized with optional 2D scanner | Internal Circularly Polarized | ||||||||||||
| 天線選項 | High Performance CP High Performance CP with 2D Imager 可客製化 |
|||||||||||||
| 掃描器 | Motorola SE4500 2D imager | |||||||||||||
| 解析度 | 752 x 480 | |||||||||||||
| Field of View | 40°(H) x 25°(V) | |||||||||||||
| 焦距 | SR: 8 in DL: 5.3 in HD: 2.9 in |
|||||||||||||
| 瞄準 LED (VLD) | 655 ±10 nm Laser | |||||||||||||
| 照明 | 625 ±5 nm LEDs (2x) | |||||||||||||
| 最小列印對比 | 25% | |||||||||||||
| 支援條碼 | 1D All major codes 2D PDF417, MicroPDF417, Composite, RSS,TLC-39, Datamatrix, QR code, Micro QR code, Aztec, MaxiCode Postal Codes: US PostNet, US Planet, UK Postal, Australian Postal, Japan Postal Dutch Postal (KIX) |
|||||||||||||
| 範圍 |
|
|||||||||||||
| 藍芽 | Bluetooth® Version 2.1 Class 2 (距離 30m) SPP Profile HID Profile Apple iAP |
Bluetooth® Version 2.1 Class 2 (距離 30m) SPP Profile Apple iAP (Coming soon: Bluetooth® HID) |
||||||||||||
| 藍芽配對 | PIN, Simple Secure Pairing, NFC OOB Pairing | |||||||||||||
