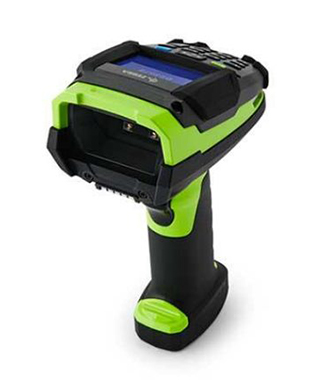

超堅固手持掃描器
3600 系列無與倫比的性能與鍵盤和彩色螢幕的多功能結合。 一套預先構建的應用程序可以輕鬆處理任務,包括向任何掃描項目添加數量和位置數據的能力。

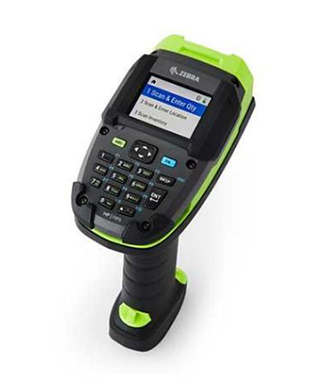

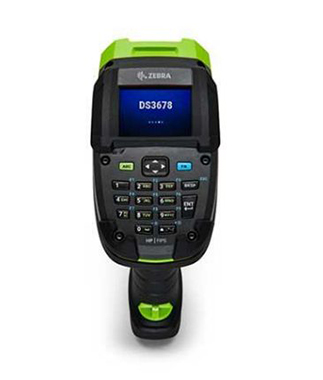

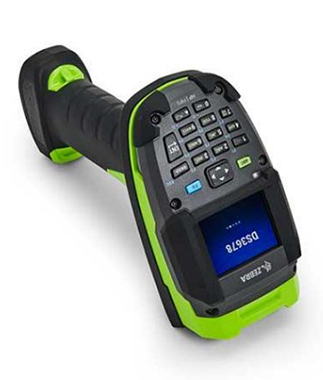

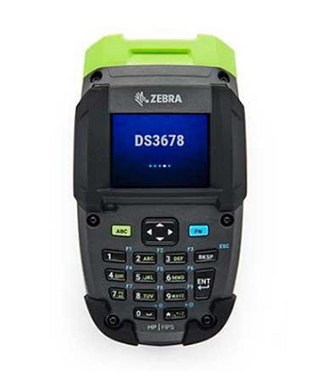

鍵盤和彩色螢幕:只需掃描一件商品,然後在鍵盤上輸入數量即可。 符合人體工學的鍵盤易於單手使用,預建應用程序為工作人員提供“即取即拍”簡單性

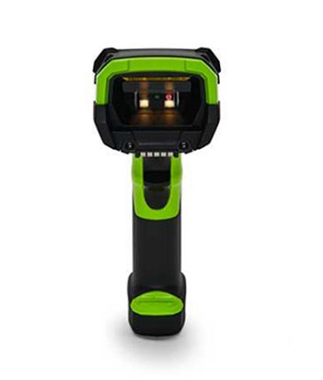

掃描性能:DS3600-KD 可以掃描包括質量差、髒污或損壞的條碼或收縮包裝中的條碼。 可以掃描 7 英尺/2.1 米遠的條碼。 掃描器可擷取照片、智能去歪斜和優化圖像、自動解析 GS1 標籤數據並在一次掃描中捕獲多達 20 個條碼。
IP65防護等級:3600 系列是針對最惡劣環境的超堅固設計,防塵、防濺、防水等級達到 IP65/IP68,可以用軟管沖洗,並能承受 10 英尺/3 米的高度跌落到混凝土上。 IP65 密封底座提供了完整的超堅固無線解決方案。

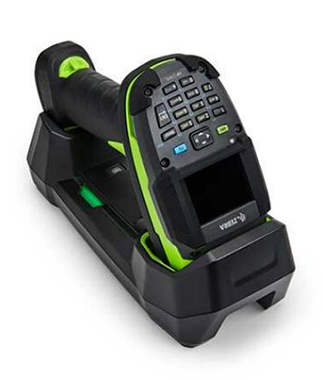

使用 AutoConfig 即時切換工作流程:掃描器設置存儲在底座中,只需將 DS3600-KD 與不同的底座配對,即可為新的主機應用程序自動配置它無需手動更改設置。
尺寸 | 19cm H x 7.8cm W x 14.3cm D |
重量 | 510 g (includes battery pack) |
輸入電壓 | Host powered: 4.5 VDC min., 5.5 VDC max. External power supply: 11.4 VDC min., 12.6 VDC max. |
顯示屏 | 2.0 in. QVGA (320 x 240) color display; Corning Gorilla Glass |
按鍵 | Backlit 19-key alpha-numeric, with blue and green shift-key functions |
電池 | PowerPrecision+ 3100 mAh Li-Ion rechargeable battery |
介面 | USB, RS232, Keyboard Wedge Industrial Ethernet: EtherNet/IP, Profinet Modbus TCP and Std TCP/IP |
Imager Field of View | Horizontal: 31°, Vertical: 23° |
Motion Tolerance | 2.54 m/s(100% 13mil UPC) |
充滿電掃描可讀取次數 | 60,000+ |
儲存溫度 | -40°C ~ +70°C |
工作溫度 | -20°C ~ +50°C |
溼度 | 5% ~ 95% 不凝結 |
環境密封 | IP65 和 IP68,符合適用的 IEC 密封規範 |
耐摔規格 | 室溫下可承受多次3米跌落到混凝土上 -20° C 至 50° C 下承受多次2.4米跌落至混凝土的衝擊 |
翻滾規格 | 7500 3.3 ft./1.0 m tumbles |
一維 | Code 39, Code 128, Code 93, Codabar/NW7, Code11, MSI Plessey, UPC/EAN, I 2 of 5, Korean 3 of 5,GS1 DataBar, Base 32 (Italian Pharma) |
二維 | PDF417, Micro PDF417, Composite Codes, TLC-39,Aztec, DataMatrix, MaxiCode, QR Code, Micro QR,Chinese Sensible (Han Xin), Postal Codes |
OCR | OCR-A/B, MICR-E13B, US Currency Serial Number |
IUID Support | Supports IUID parsing, the ability to read and separate IUID fields per application requirements |
Bluetooth Radio | Bluetooth Class 1, Version 4.0 (LE), serial port (SPP) |
Data Rate | 3 Mbit/s (2.1 Mbit/s) for Classic Bluetooth 1 Mbit/s (0.27 Mbit/s) for Low Energy |
DS3600-KD 英文型錄 |
