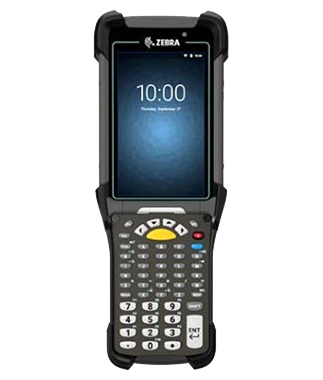

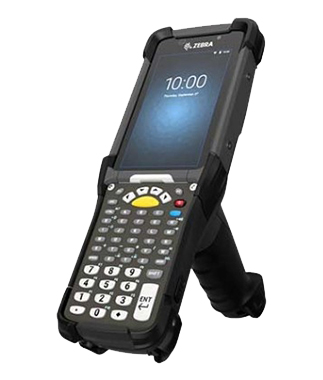

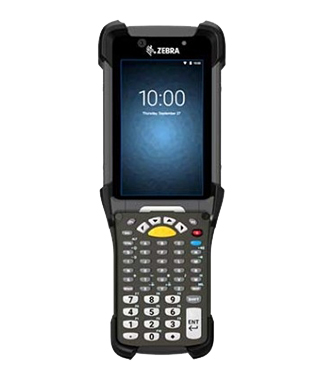

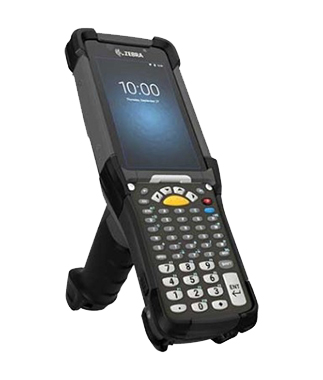

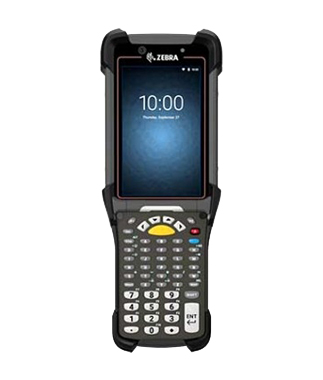

MC9300 Mobile Computer
手持行動電腦
全球銷售超過三百萬台MC9000系列產品
超耐用的MC9300行動電腦，它是世界上最暢銷，最受信任的Android企業行動電腦，提供您最佳的Android商業平台和應用程序支持。。
操作系統：Upgradeable to Android 14
處理器：Qualcomm Snapdragon™ 660 octa-core, 2.2 GHz
密封等級：IP67 and IP65 per applicable IEC sealing specifications
記憶體：4 GB RAM/32 GB Flash pSLC
電池：Rechargeable Li-Ion: 3.6V, 7000mAh, (Freezer Capacity battery — 5000mAh)
物理特性
| 尺寸(LxWxH) | 240 x 88 x 189 mm |
| 重量 | 765g（包括電池） |
| 鍵盤 | 29-, 34-, 43- and 53-key; Terminal Emulation (5250, VT), 58 Key Alpha-Numeric |
| 顯示 | 4.3” WVGA (800 x 480), color display |
| IST | Automatically adjusts display & keypad backlight brightness |
| 主電池 | Rechargeable Li-Ion: 3.6V, 7000mAh, (Freezer Capacity battery — 5000mAh) |
性能特性
| 處理器(CPU) | Qualcomm Snapdragon™ 660 octa-core, 2.2 GHz |
| 作業系統(OS) | Upgradeable to Android 14 |
| 記憶體 | 4 GB RAM/32 GB Flash pSLC |
| 擴充 | User accessible MicroSD with 32GB SDHC and up to 256GB SDXC |
| 相機 | Front: 5MP fixed focus, 2.0 aperture Rear: 13MP autofocus, 2.2 aperture, flash LED generates balanced white light, support torch mode, supports rear camera barcode scanning |
| NFC | Tap to Pair, ISO 14443 Type A and B, Felica and ISO 15693 cards, P2P mode and Card Emulation via Host (HCE) support |
| 數據採集 | SE965: 1D standard range scan engine SE4750 SR: Standard range omnidirectional 1D/2D imaging engine SE4750 DP:3 Direct Part Marking (DPM) imaging engine SE4850: Extended range 1D/2D imaging engine |
用戶環境
| 跌落測試 | Standard: 8 ft. (2.4m) drops to concrete across temperature per MIL-STD-810G. Freezer: 7 ft. (2.1m) drops to concrete across temperature per MIL-STD-810G. |
| 翻滾測試 | 2,000 次 1m 翻滾測試(4,000 次點擊)，符合 IEC 規格 |
| 掃描窗材質 | Corning GorillaTM glass |
| 環境密封 | IP67 and IP65 per applicable IEC sealing specifications |
| 作業溫度 | Standard: -20°C to +50°C, Freezer: -30°C to +50°C |
| 儲存溫度 | -40° ~ +70℃ |
| 溼度 | Standard: 5% to 95%, non-condensing; Freezer: 5% to 95%, condensing (Condensation-free model with integrated heaters) |
無線數據通信
| WLAN | IEEE 802.11 a/b/g/n/ac/d/h/i/r/k/w; Wi-Fi certified; IPv4, IPv6, 2x2 MU-MIMO |
| WLAN 安全 | WEP (40 or 104 bit); WPA/WPA2 Personal (TKIP and AES); WPA/WPA2 Enterprise (TKIP and AES) - EAP-TTLS (PAP, MSCHAP, MSCHAPv2), EAP-TLS, PEAPv0-MSCHAPv2, PEAPv1-EAP-GTC and LEAP, EAP-PWD FIPS 140-2 Level 1: Data in Motion and Data at Rest |
| WPAN（藍牙支持） | Class 2, Bluetooth V5.0 with BR/EDR and Bluetooth Low Energy (BLE) Support |
| Data rate | 5GHz: 802.11a/n/ac — up to 866.7 Mbps 2.4GHz: 802.11b/g/n — up to 300 Mbps |
設備符合規範
| TAA (Optional on select configurations) | IEEE 802.11 a/b/g/n/ac/d/h/i/r/k/w; Wi-Fi certified; IPv4, IPv6, 2x2 MU-MIMO |
| Non-Incendive (NI)1 (Optional on select configurations) | Suitable for use in Class I, II, III Div 2 Safety: cULus Listing — ISA/ANSA 12.12.01 Gases: Class I — Groups A, B, C, D Dusts: Class II — Groups F, G Fibers & Flyings: Class III -20°C ≤ Ta ≥ +50°C T6 |
