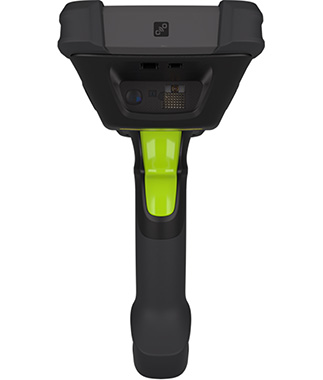

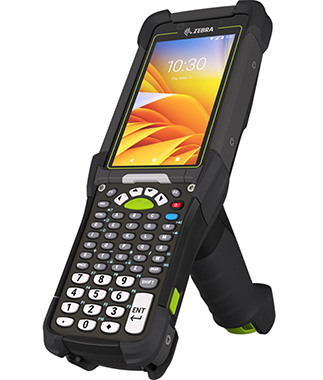

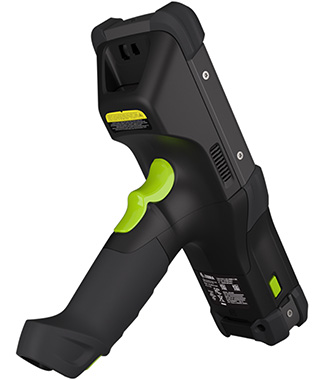

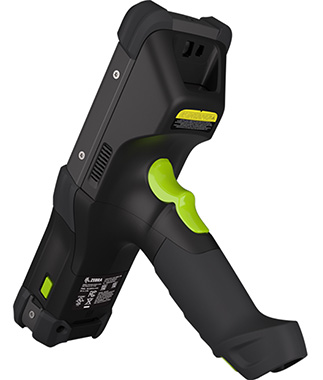

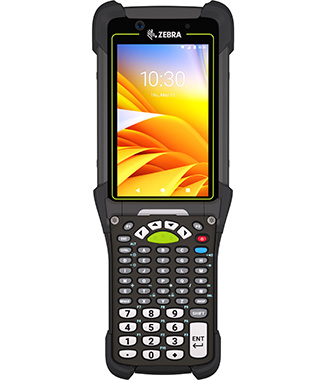

MC9400/MC9450 Mobile Computer
手持行動電腦
全球銷售超過近五百萬台MC9000系列產品
超耐用的MC9400行動電腦，它是世界上最暢銷，最受信任的Android企業行動電腦，提供您最佳的Android商業平台和應用程序支持。
操作系統：Upgradeable to Android 17
處理器：Qualcomm 4490 octa-core; 2.4 GHz
密封等級：IP65 和 IP68，帶電池，符合適用的 IEC 密封規範
記憶體：6 GB RAM/128 GB Flash
電池：Rechargeable Li-Ion: 3.6V, 7000mAh, (Freezer Capacity battery — 5000mAh)
物理特性
| 尺寸(LxWxH) | 240 x 88 x 189 mm |
| 重量 | 743g（包括電池） |
| 鍵盤 | Backlit, field replaceable keypads; 58 Key AlphaNumeric, 53 Key AlphaNumeric STD, 53 Key Terminal Emulation (5250 and VT), 43 Key/34 Key Numeric/Function, 29 Key Numeric/Calculation |
| 顯示 | 4.3” WVGA (800 x 480), color display |
| IST | Automatically adjusts display & keypad backlight brightness |
| 電池 | Rechargeable Li-Ion: 3.6V, 7000mAh (25.20 Wh); Optional BLE Battery Li-Ion 3.6V, 7000mAh (25.20 Wh); Optional Freezer Capacity battery — 5000mAh (18.80 Wh); Optional 7000mAh (25.20 Wh) Non-Incendive battery; Hot swap battery backup with temporary session persistence |
| 擴展插槽 | MicroSD supports up to 2 TB |
| 網路連接 | MC9400/MC9450: WLAN, WPAN (Bluetooth), USB 2.0, High Speed (host and client); MC9450 only: WWAN 5G; data only |
| SIM卡 | MC9450 only: 1 nano SIM; 1 eSIM |
性能特性
| 處理器(CPU) | Qualcomm 4490 octa-core; 2.4 GHz |
| 作業系統(OS) | Upgradeable to Android 17 |
| 記憶體 | 6 GB RAM/128 GB Flash |
| 相機 | Front: 8 MP; Rear: 16 MP autofocus flash LED generates balanced white light supports Torch mode + HDR (standard) |
| NFC | ISO 14443 Type A and B; FeliCa and ISO 15693 cards |
| 掃描器 | SE58 1D/2D Extended Range Scan Engine with IntelliFocus™ technology with green laser aimer SE4770 1D/2D Scan Engine with red laser aimer |
用戶環境
| 跌落測試 | Exceeds per MIL-STD-810H: 12 ft./3.65 m to concrete; Enterprise drop standard 8 ft. (2.4 m) to concrete across temperature (-20°C to 50°C) exceeding MIL-STD-810H Freezer version: 7 ft. (2.1 m) to concrete (-30°C to 50°C) exceeding MIL-STD810H |
| 翻滾測試 | 6,000 次 1m 翻滾測試，符合 IEC 規格 |
| 掃描窗材質 | Corning Gorilla glass |
| 環境密封 | IP65 and IP68 with battery per applicable IEC sealing specifications |
| 作業溫度 | Standard: -20°C to +50°C, Freezer: -30°C to +50°C |
| 儲存溫度 | -40° ~ +70℃ |
| 溼度 | Standard: 5% to 95%, non-condensing; Freezer: 5% to 95%, condensing (Condensation-free model with integrated heaters) |
無線數據通信
| WLAN | IEEE 802.11 a/b/g/n/ac/ax/d/h/i/r/k/v/w/mc; 2x2 MU-MIMO; Tri-band (2.4 GHz, 5 GHz, 6 GHz)2; Wi-Fi CERTIFIED 6™ (Wi-Fi 6E); Dual Band Simultaneous;IPv4, IPv6 |
| WLAN 安全與加密 | WEP (40 or 104 bit); Enhanced Open (OWE); WPA/WPA2 Personal (TKIP and AES); WPA3 Personal (SAE); WPA/WPA2 Enterprise (TKIP and AES); WPA3 Enterprise (AES); EAP-TTLS (PAP, MSCHAP, MSCHAPv2), EAP-TLS, PEAPv0-MSCHAPv2, PEAPv1-EAP-GTC, LEAP, EAP-PWD; WPA3 Enterprise 192-bit mode (GCMP256) - EAP-TLS; MC9450 only: EAP-SIM, EAP-AKA, EAP-AKA Prime |
| WPAN（藍牙支持） | Class 2, Bluetooth v5.3 and Secondary BLE for beaconing within BLE battery |
| Data rate | 2.4 GHz: 802.11b/g/n/ax — 20 MHz - up to 286.8 Mbps; 5 GHz: 802.11a/n/ac/ax — 20 MHz, 40 MHz, 80 MHz, 160 MHz — up to 2402 Mbps; 6 GHz: 802.11ax — 20 MHz, 40 MHz, 80 MHz, 160MHz - up to 2402 Mbps |
設備符合規範
| TAA (Optional on select configurations) | Trade Agreement Act compliance optional on select configurations |
| Non-Incendive (NI)1 (Optional on select configurations) | Class I,II, III Div 2 Gases: Class I, Groups A/B/C/D Dusts: Class II, Groups F/G Fibers/ Flyings: Class III -20° C ≤ Ta ≥ 50° C T6 |
產品型錄
| MC9400/9450 英文型錄 |
