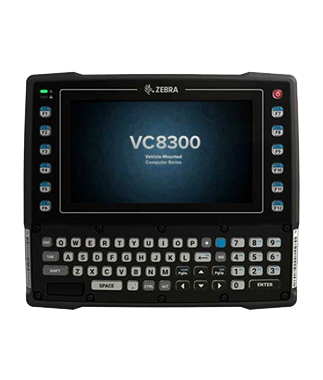

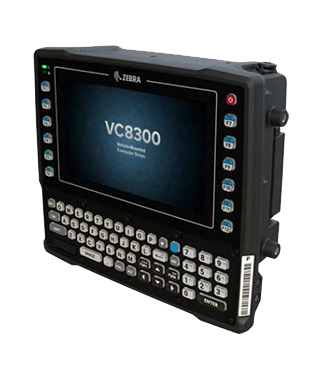

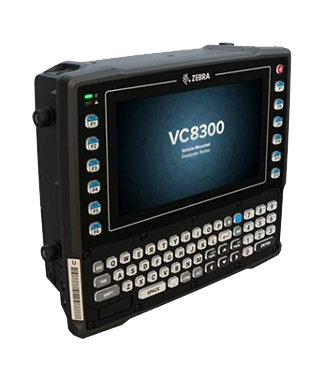

Zebra VC8300 Vehicle Mount Computer
工業平板電腦
Android 平台專為冷凍冷藏倉庫環境設計使用。
隨著Windows作業系統的車載電腦即將停止服務，當您已準備好遷移到Android作業系統。您需要一款堅固耐用的設備，以使轉換和設備管理變得簡單，輕鬆且具有成本效益。您現在需要一個鍵盤來支持您的“綠屏”應用程序，並且需要一個觸摸屏來支持未來的Android應用程序。您需要對Android操作系統進行企業級控制。使用VC8300來滿足全部需求。
8"電容觸控螢幕：兩全其美：大型觸摸屏和鍵盤
作業系統：Android 8.1(Oreo)
WiFi：IEEE 802.11a/b/g/n/ac/k/r; 2x2 MU-MIMO, Bluetooth® v5.0
處理器：Qualcomm SnapdragonTM 660 octa-core 2.2 GHz
電源電壓：10 to 60V DC isolated; Internal
物理特性
| 尺寸(LxWxD) | 276 mm x 238 mm x 90 mm |
| 重量 | 3.7 kg |
| 顯示 | WXGA 8 inch, color display; 1280x720, 1,000 NITs Touch Panel: Capacitive multi touch, Corning Gorilla Glass with air gap, heater option, anti-reflective foil option |
| 電壓 | 10 to 60V DC isolated; Internal |
| 介面 | 1x Type C USB 3.0 combination host and client port 1 x USB 2.0 host port (with strain relief and covered) 1 x standard powered USB 2.0 host port with 12V / 1.5 A (with strain relief and covered) 2 x RS-232 COM ports with power on pin 9 1 x 3.5 mm audio jack for push-to-talk speaker/mic (with strain relief and covered) optional USB-Ethernet adapterDocking connector |
性能特性
| 處理器(CPU)及作業系統(OS) | CPU: Qualcomm SnapdragonTM 660 octa-core 2.2 GHz O/S: Android 8.1 Oreo with Zebra’s Restricted Mode for control over GMS and other services |
| 記憶體 | 4GB RAM/32 GB Flash pSLC |
| 軟體 | Ivanti Velocity (pre-loaded and pre-licensed) |
| Scanner Support | HID via USB and Bluetooth; SSI via USB and Bluetooth for DS/LI 36XX and RS6000; Serial RS232 with power on pin 9 |
用戶環境
| 作業溫度 | -30°C ~ 50℃ |
| 儲存溫度 | -40°C ~ 60℃ |
| 耐用測試 | Shock/Vibration: IEC 60721-3-5M3; MIL-STD 810F; Zebra internal Salt Fog: 48h of 5% solution at 35° C Solar Radiation: MIL-STD 810G Method 505.5 |
| 密封 | IP66 |
無線通信
| WLAN Radio | IEEE 802.11a/b/g/n/ac/k/r; 2x2 MU-MIMO |
| WPAN（藍牙支持） | Class 2, Bluetooth v5.0, Bluetooth Low Energy (BLE) |
