PCB 抗金屬標籤
| 照片 | 品項 | 晶片 | 標籤尺寸 | 工作溫度 | 頻率 | 型錄 |
|---|---|---|---|---|---|---|
 |

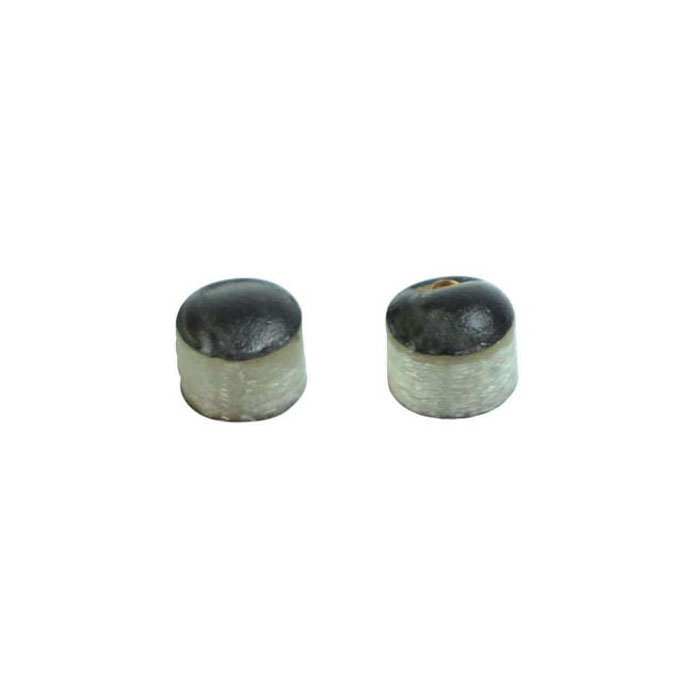

OPPD5 | Alien Higgs-3 EPC 96bits (Up to 480bits) , USER 512bits, TID64bits |
diameter 5mm*T4.0mm | 操作溫度:-40~100℃, 儲存溫度:-40~150℃ | US 902~928, EU 865~868MHz | 連結 |
 |

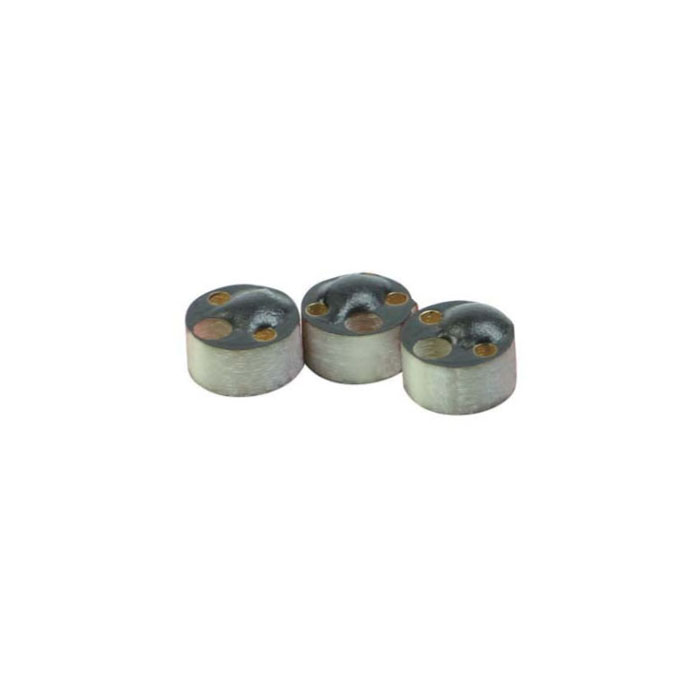

OPPD6 | Alien Higgs-3 EPC 96bits (Up to 480bits) , USER 512bits, TID64bits |
diameter 6mm*T4.0mm | 操作溫度:-40~100℃, 儲存溫度:-40~150℃ | US 902~928, EU 865~868MHz | |
 |

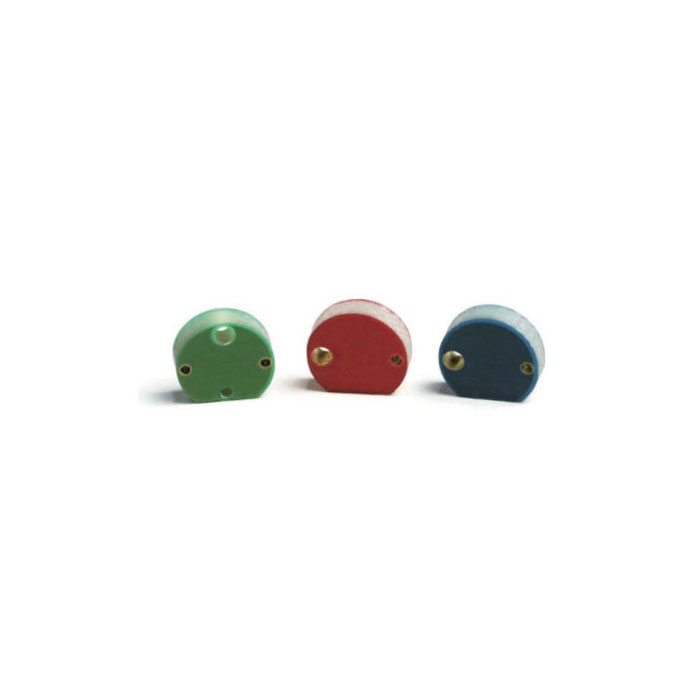

OPPD10 | Alien Higgs-3 EPC 96bits (Up to 480bits) , USER 512bits, TID64bits |
diameter 10mm*T3.0mm (Hole:D2mm) | 操作溫度:-40~100℃, 儲存溫度:-40~150℃ | US 902~928, EU 865~868MHz | |
 |

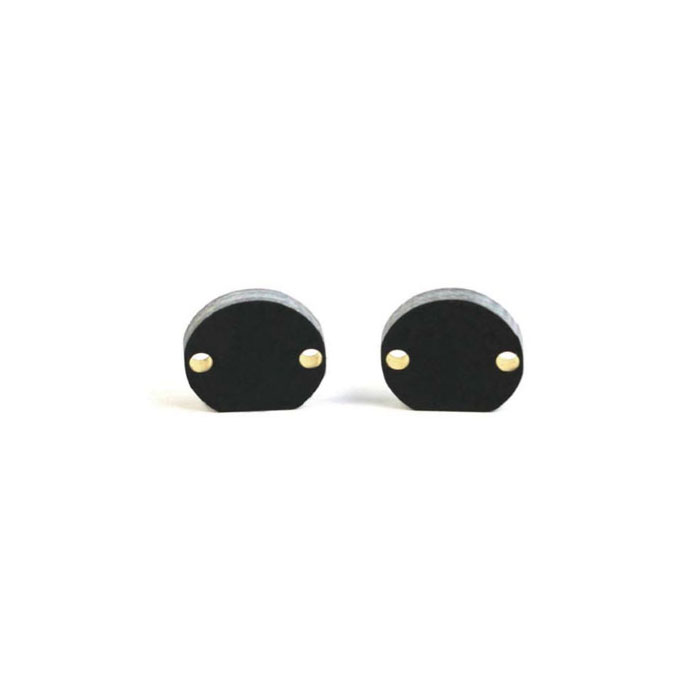

OPPD13 | Alien Higgs-3 EPC 96bits (Up to 480bits) , USER 512bits, TID64bits |
diameter 13mm*T3.0mm (Hole:D2mm*2) | 操作溫度:-40~100℃, 儲存溫度:-40~150℃ | US 902~928, EU 865~868MHz | |
 |

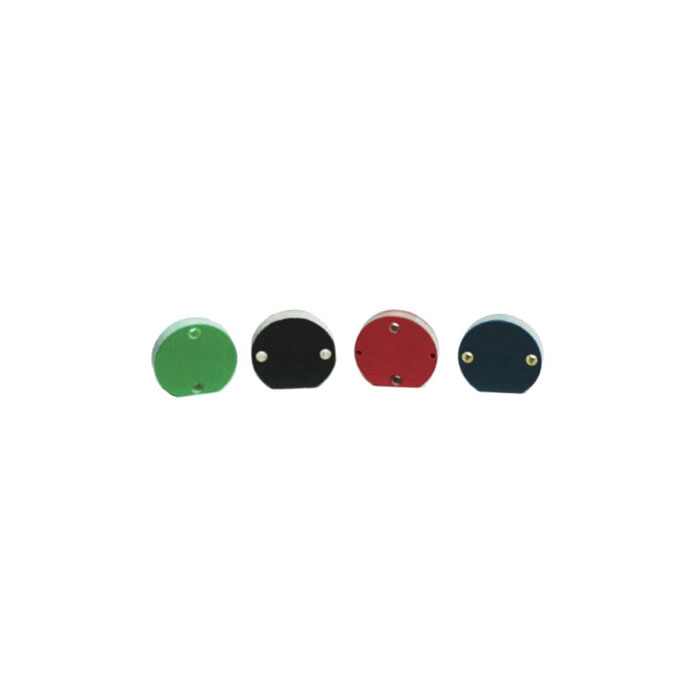

OPPD16 | Alien Higgs-3 EPC 96bits (Up to 480bits) , USER 512bits, TID64bits |
diameter 16mm*T3.0mm (Hole:D2mm*2) | 操作溫度:-40~100℃, 儲存溫度:-40~150℃ | US 902~928, EU 865~868MHz | |
 |
OPPD20 | Alien Higgs-3 EPC 96bits (Up to 480bits) , USER 512bits, TID64bits |
diameter 20mm*T2.0mm (Hole:D2mm*2) | 操作溫度:-40~100℃, 儲存溫度:-40~150℃ | US 902~928, EU 865~868MHz | |
 |

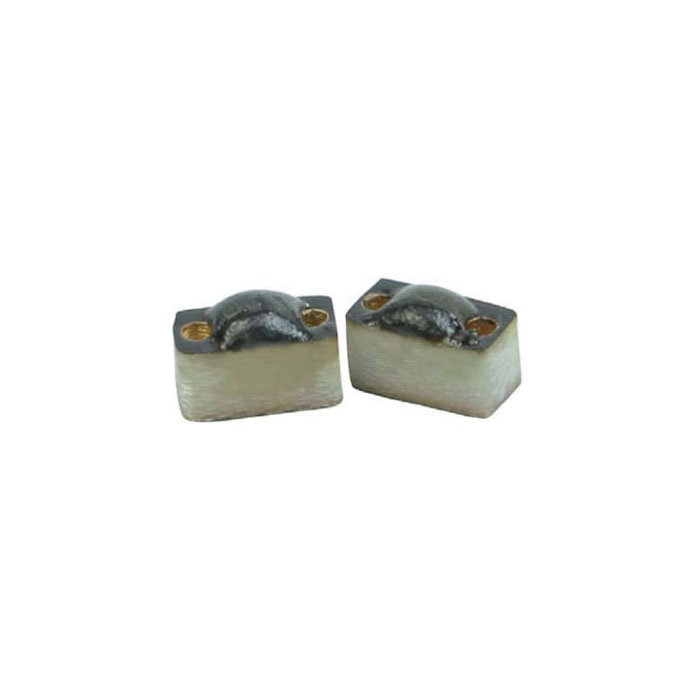

OPP0603 | Alien Higgs-3 EPC 96bits (Up to 480bits) , USER 512bits, TID64bits |
6*3mm*T4.0mm | 操作溫度:-40~100℃, 儲存溫度:-40~150℃ | US 902~928, EU 865~868MHz | |
 |

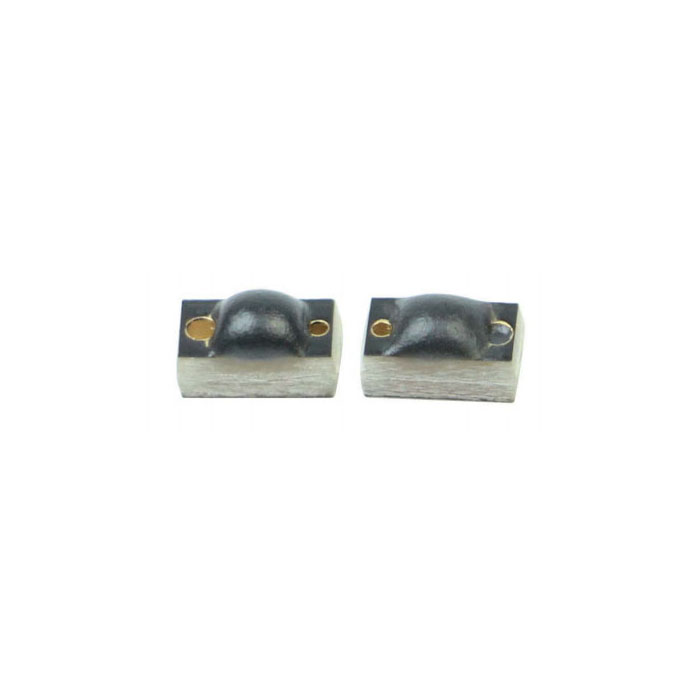

OPP060302 | Alien Higgs-3 EPC 96bits (Up to 480bits) , USER 512bits, TID64bits |
6*3mm*T2.0mm | 操作溫度:-40~100℃, 儲存溫度:-40~150℃ | US 902~928, EU 865~868MHz | |
 |

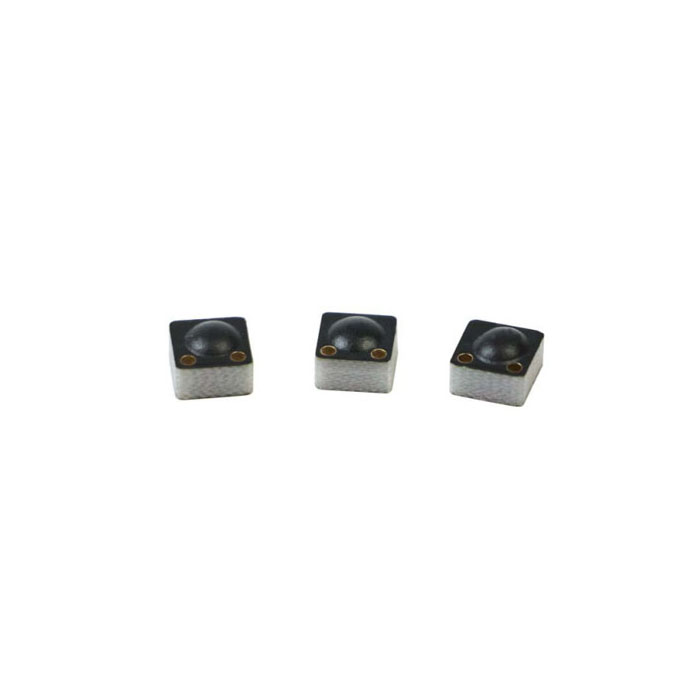

OPP0606 | Alien Higgs-3 EPC 96bits (Up to 480bits) , USER 512bits, TID64bits |
6*6mm*T3.0mm | 操作溫度:-40~100℃, 儲存溫度:-40~150℃ | US 902~928, EU 865~868MHz | |
 |
OPP0803 | Alien Higgs-3 EPC 96bits (Up to 480bits) , USER 512bits, TID64bits |
8*3mm*T3.0mm | 操作溫度:-40~100℃, 儲存溫度:-40~150℃ | US 902~928, EU 865~868MHz | |
 |

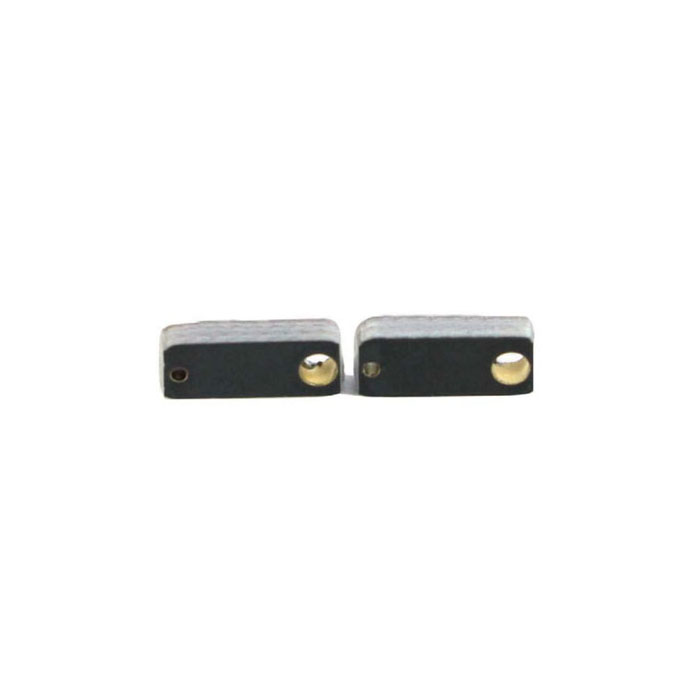

OPP1004 | Alien Higgs-3 EPC 96bits (Up to 480bits) , USER 512bits, TID64bits |
10*4mm*T2.0mm | 操作溫度:-40~100℃, 儲存溫度:-40~150℃ | US 902~928, EU 865~868MHz | |
 |

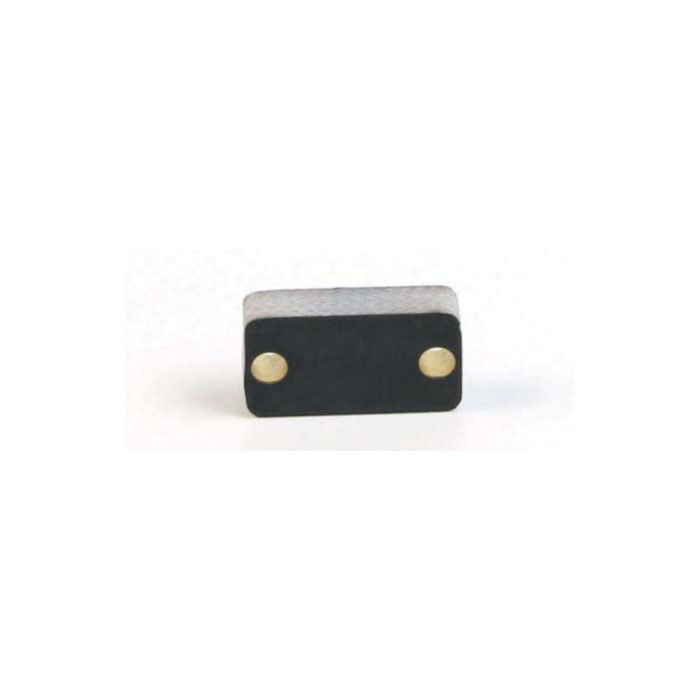

OPP1307 | Alien Higgs-3 EPC 96bits (Up to 480bits) , USER 512bits, TID64bits |
13*7mm*T3.0mm | 操作溫度:-40~100℃, 儲存溫度:-40~150℃ | US 902~928, EU 865~868MHz | |
 |
OPP1504 | Alien Higgs-3 EPC 96bits (Up to 480bits) , USER 512bits, TID64bits |
15*4mm*T2.0mm | 操作溫度:-40~100℃, 儲存溫度:-40~150℃ | US 902~928, EU 865~868MHz | |
 |

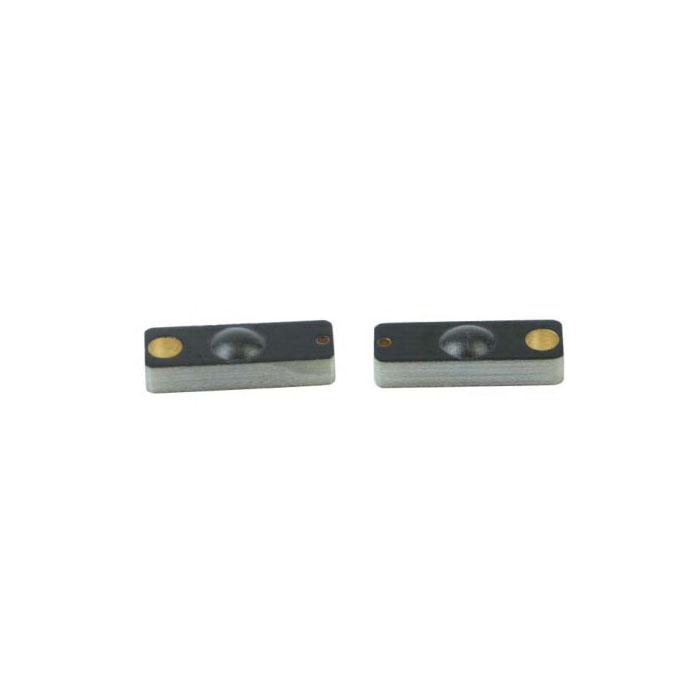

OPP1806 | Alien Higgs-3 EPC 96bits (Up to 480bits) , USER 512bits, TID64bits |
18*6mm*T3.0mm | 操作溫度:-40~100℃, 儲存溫度:-40~150℃ | US 902~928, EU 865~868MHz | |
 |

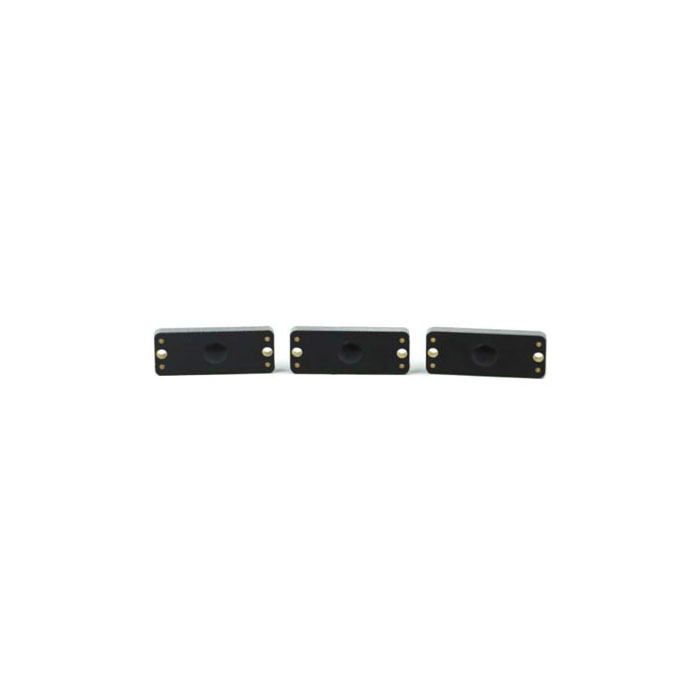

OPP2208 | Alien Higgs-3 EPC 96bits (Up to 480bits) , USER 512bits, TID64bits |
22*8mm*T3.0mm | 操作溫度:-40~100℃, 儲存溫度:-40~150℃ | US 902~928, EU 865~868MHz | 連結 |
 |

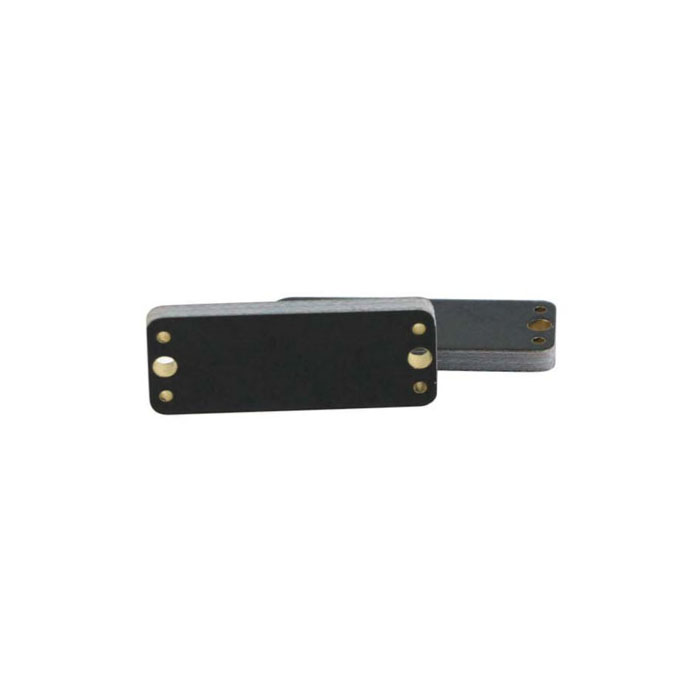

OPP2510 | Alien Higgs-3 EPC 96bits (Up to 480bits) , USER 512bits, TID64bits |
25*10mm*T2.0mm | 操作溫度:-40~100℃, 儲存溫度:-40~150℃ | US 902~928, EU 865~868MHz | |
 |

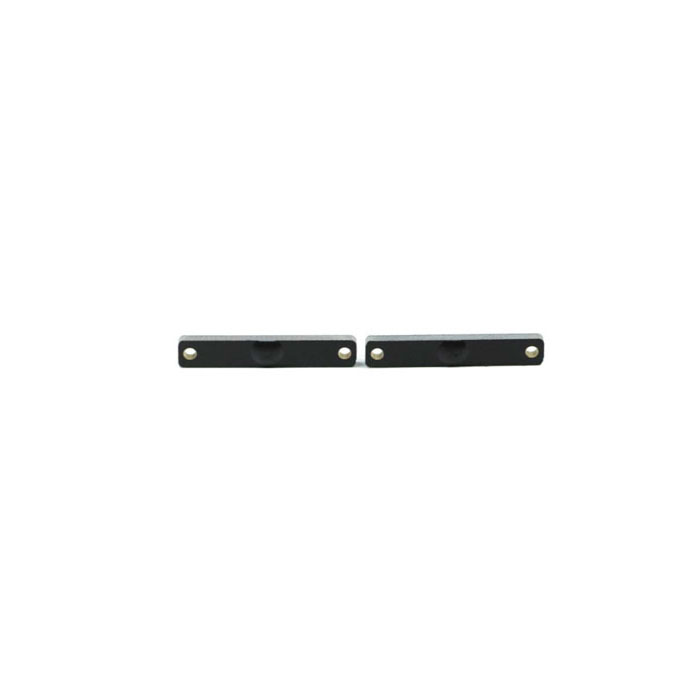

OPP3005 | Alien Higgs-3 EPC 96bits (Up to 480bits) , USER 512bits, TID64bits |
30*5mm*T2.0mm | 操作溫度:-40~100℃, 儲存溫度:-40~150℃ | US 902~928, EU 865~868MHz | |
 |

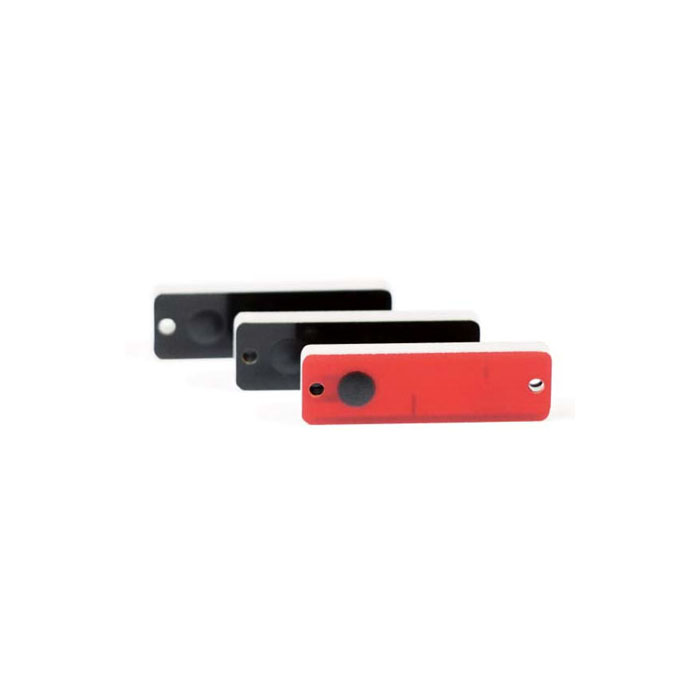

OPP3310 | Alien Higgs-3 EPC 96bits (Up to 480bits) , USER 512bits, TID64bits |
33*10mm*T3.5mm | 操作溫度:-40~100℃, 儲存溫度:-40~150℃ | US 902~928, EU 865~868MHz | |
 |

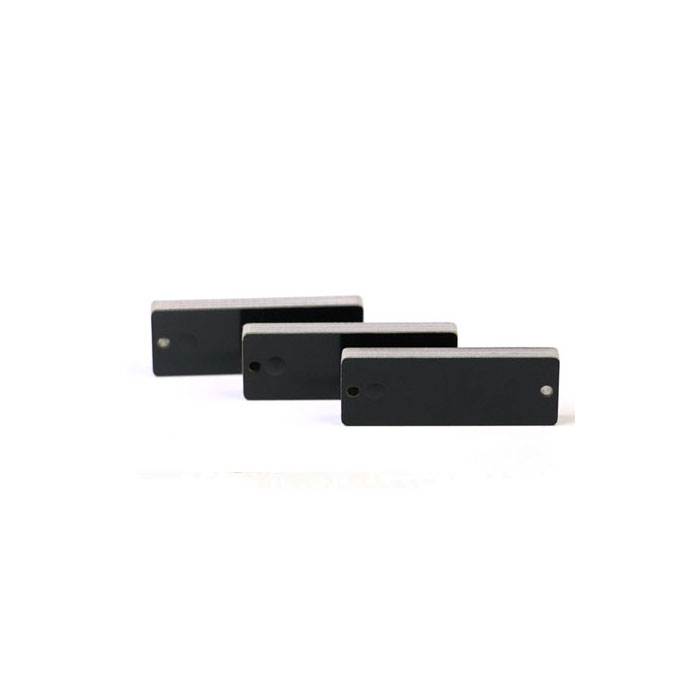

OPP3613 | Alien Higgs-3 EPC 96bits (Up to 480bits) , USER 512bits, TID64bits |
36*13mm*T3.5mm | 操作溫度:-40~100℃, 儲存溫度:-40~150℃ | US 902~928, EU 865~868MHz | 連結 |
 |

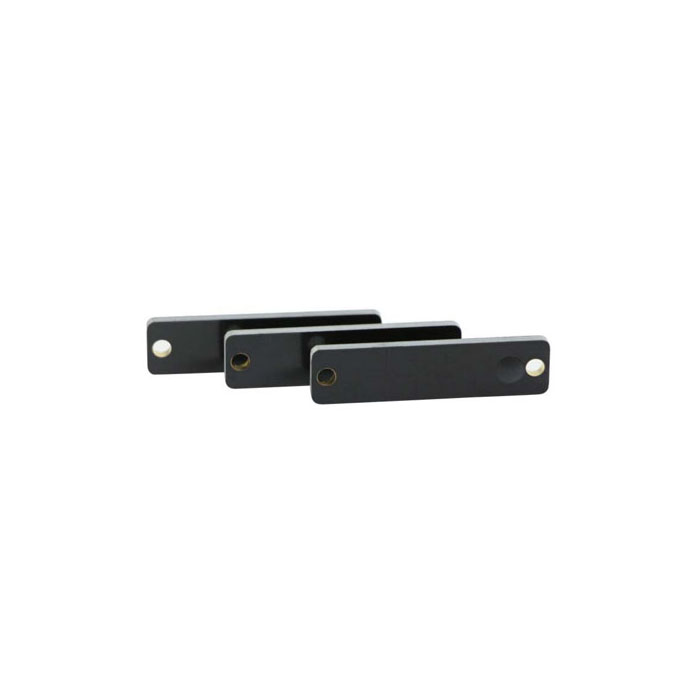

OPP4010 | Alien Higgs-3 EPC 96bits (Up to 480bits) , USER 512bits, TID64bits |
40*10mm*T2.1mm | 操作溫度:-40~100℃, 儲存溫度:-40~150℃ | US 902~928, EU 865~868MHz | |
 |

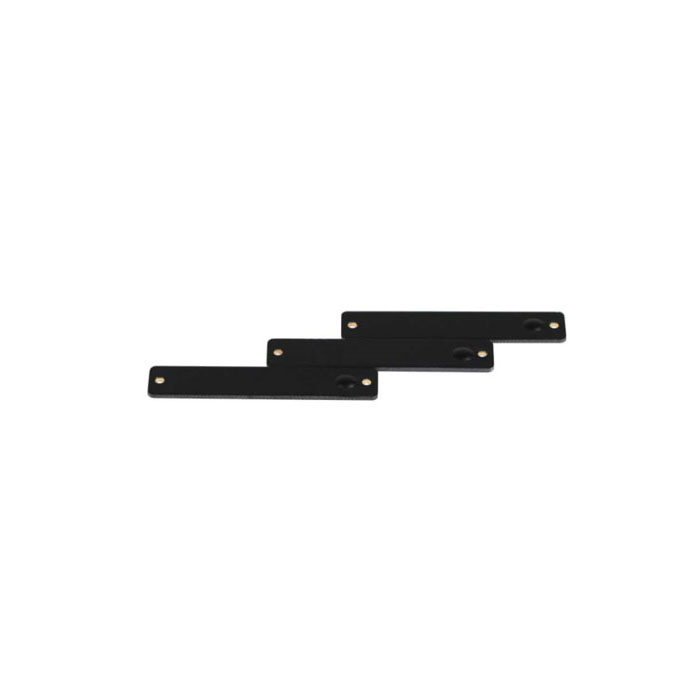

OPP5010 | Alien Higgs-3 EPC 96bits (Up to 480bits) , USER 512bits, TID64bits |
50*10mm*T1.0mm | 操作溫度:-40~100℃, 儲存溫度:-40~150℃ | US 902~928, EU 865~868MHz | |
 |

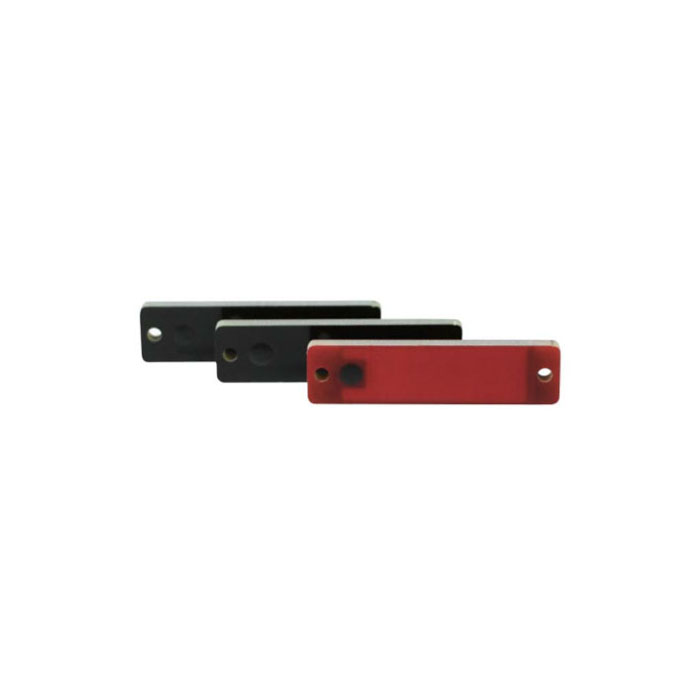

OPP5213 | Impinj Monza 4QT EPC 128bits , USER 512bits, TID64bits |
52*13mm*T3.5mm | 操作溫度:-40~100℃, 儲存溫度:-40~150℃ | US 902~928, EU 865~868MHz | 連結 |
 |

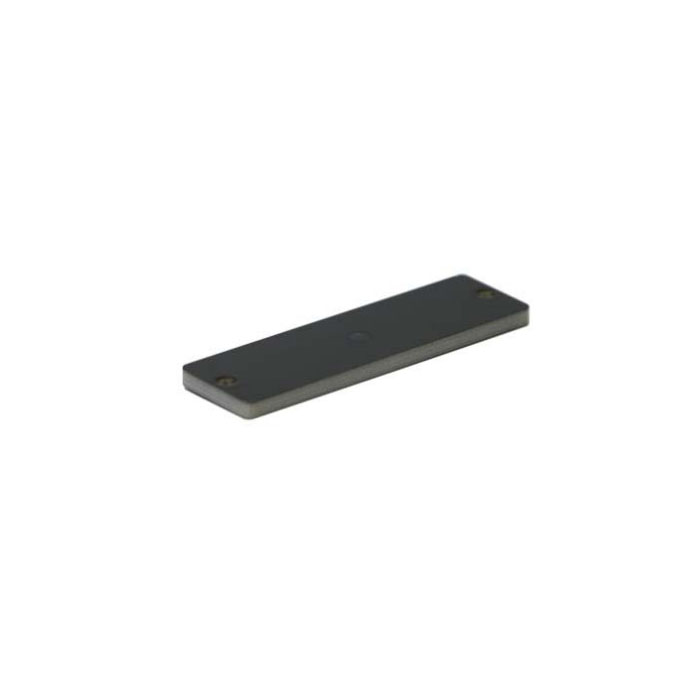

OPP7020 | Alien Higgs-3 EPC 96bits (Up to 480bits) , USER 512bits, TID64bits |
70*20mm*T3.6mm | 操作溫度:-40~100℃, 儲存溫度:-40~150℃ | US 902~928, EU 865~868MHz | |
 |

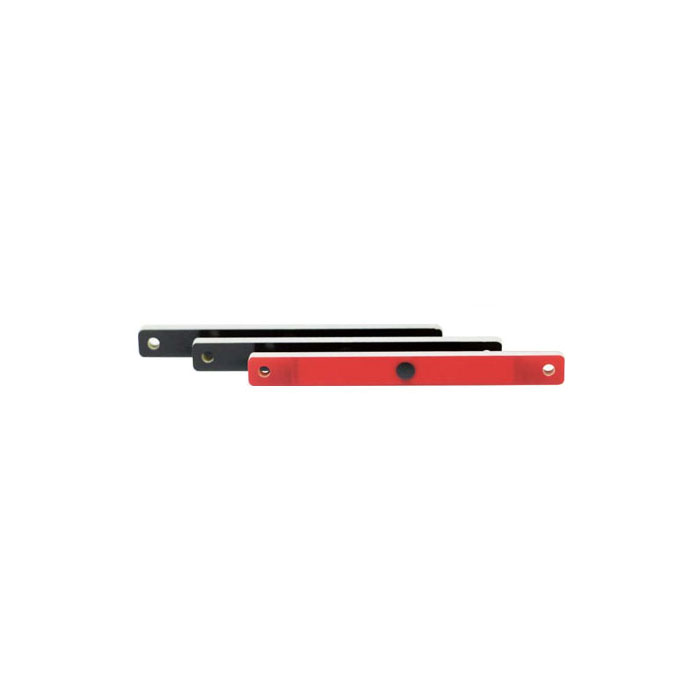

OPP8008 | Alien Higgs-3 EPC 96bits (Up to 480bits) , USER 512bits, TID64bits |
80*8mm*T3.5mm | 操作溫度:-40~100℃, 儲存溫度:-40~150℃ | US 902~928, EU 865~868MHz | |
 |

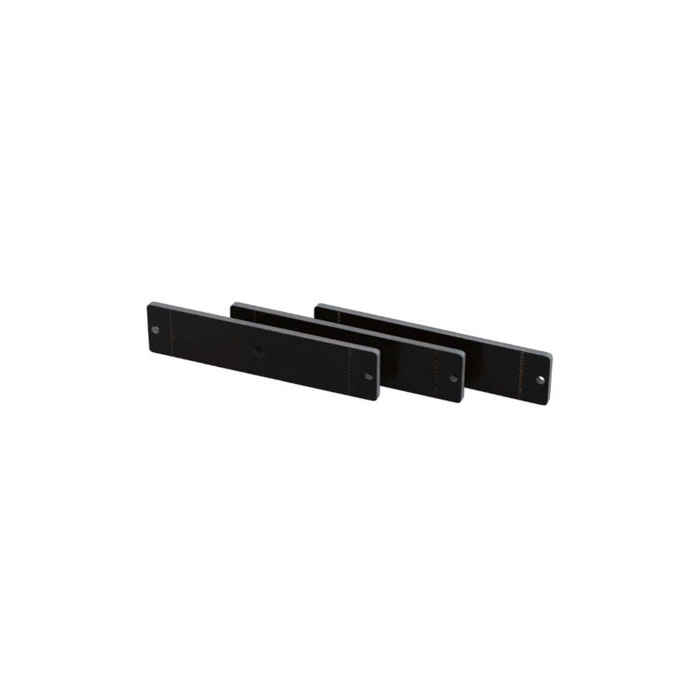

OPP9020 | Alien Higgs-3 EPC 96bits (Up to 480bits) , USER 512bits, TID64bits |
90*20mm*T3.0mm | 操作溫度:-40~100℃, 儲存溫度:-40~150℃ | US 902~928, EU 865~868MHz | |
 |

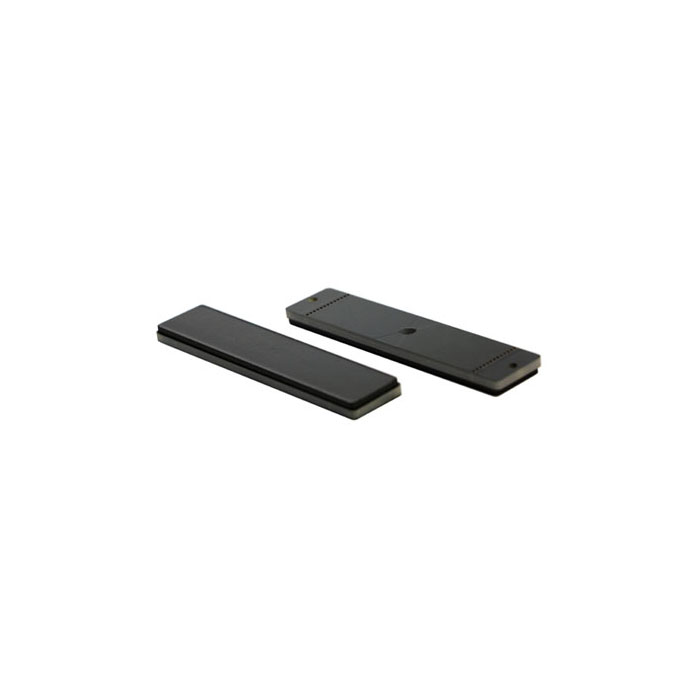

OPP9020m | Alien Higgs-3 EPC 96bits (Up to 480bits) , USER 512bits, TID64bits |
90*20mm*T5.0mm 吸鐵式 | 操作溫度:-40~100℃, 儲存溫度:-40~150℃ | US 902~928, EU 865~868MHz | |
 |

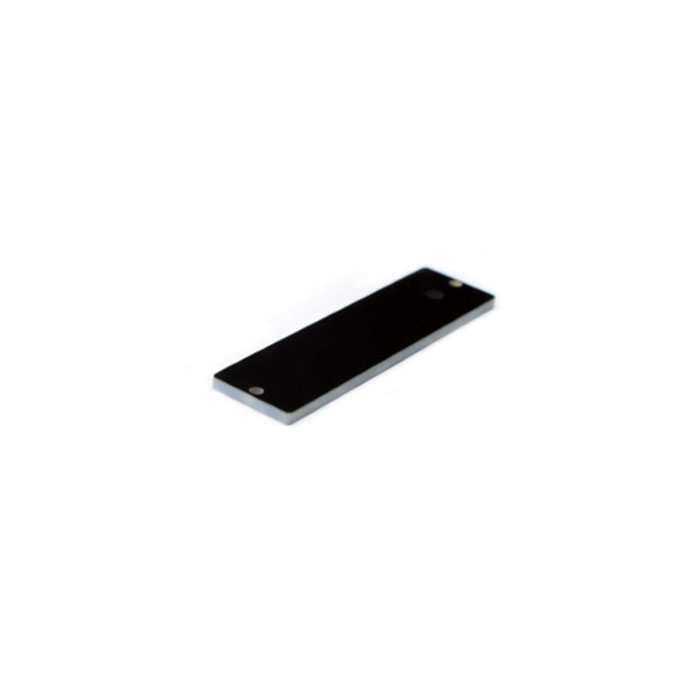

OPP9525 | Alien Higgs-3, Impinj Monza 4QT EPC 96bits (Up to 480bits) , USER 512bits, TID64bits |
95*25mm*T3.5mm | 操作溫度:-40~100℃, 儲存溫度:-40~150℃ | US 902~928 |
(耐高溫抗金屬標籤)
| 照片 | 品項 | 晶片 | 標籤尺寸 | 工作溫度 | 頻率 | 型錄 |
|---|---|---|---|---|---|---|
 |

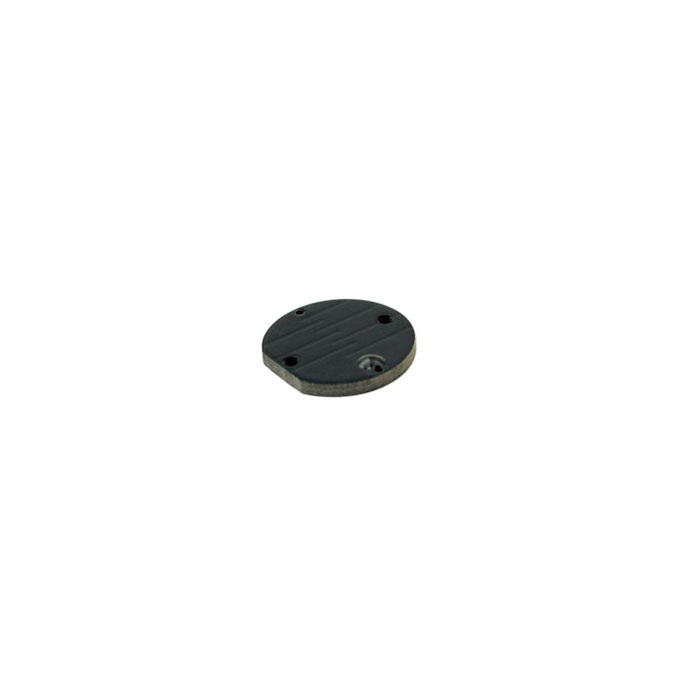

OPP2019 | Alien Higgs-4 EPC 128bits, USER 128bits, TID64bits |
diameter 20mm*T2.1mm | 操作溫度:-40~150℃, 儲存溫度:-55~200℃ (280℃ for 50分鐘, 250℃ for 150分鐘) | US 902~928, EU 865~868MHz | 連結 |
 |
OPP4215 | Alien Higgs-4 EPC 128bits, USER 128bits, TID64bits |
42*15mm, T2.1mm | 操作溫度:-40~150℃, 儲存溫度:-55~200℃ (280℃ for 50分鐘, 250℃ for 150分鐘) | US 902~928, EU 865~868MHz | 連結 |
(耐酸鹼抗金屬標籤)
| 照片 | 品項 | 晶片 | 標籤尺寸 | 工作溫度 | 頻率 | 型錄 |
|---|---|---|---|---|---|---|
 |

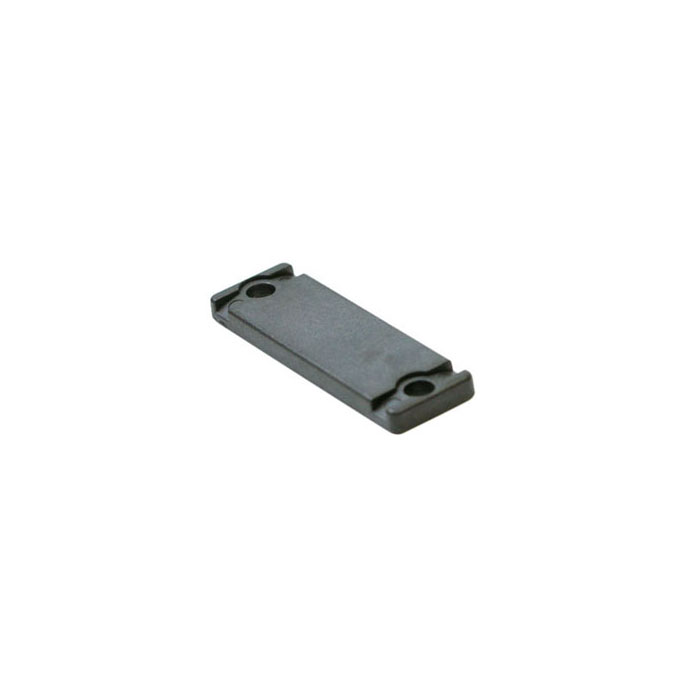

OPP6019 | Alien Higgs-4 EPC 128bits, USER 128bits, TID64bits |
60mm*19mm, T4.8mm | 操作溫度:-40~150℃, 儲存溫度:-55~200℃ (230℃ for 30分鐘, 180℃ for 120分鐘) | US 902~928, EU 865~868MHz | 連結 |
 |

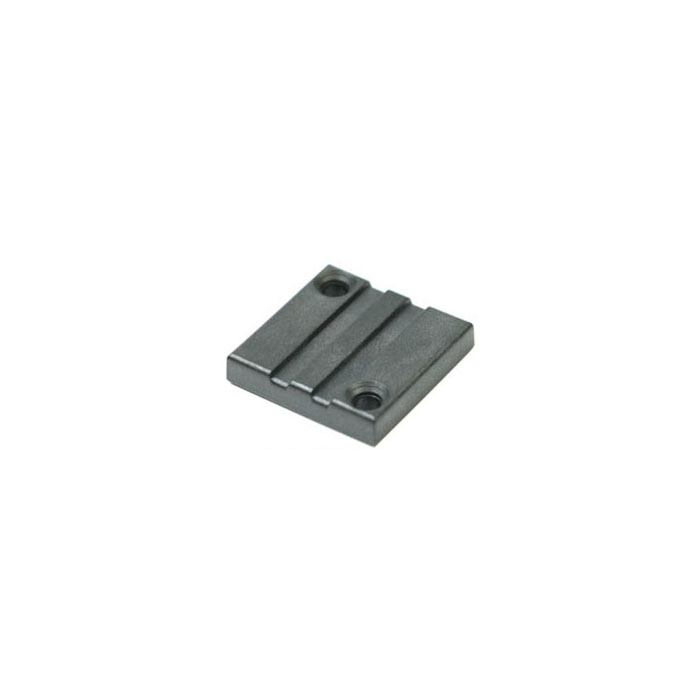

OPP2626 | Alien Higgs-3 EPC 96bits (Up to 480bits) , USER 512bits, TID64bits |
26*26mm, T5.5mm | 操作溫度:-40~100℃, 儲存溫度:-40~150℃ (230℃ for 30分鐘, 180℃ for 120分鐘) | US 902~928, EU 865~868MHz | 連結 |
(長距離讀取抗金屬標籤)
| 照片 | 品項 | 晶片 | 標籤尺寸 | 工作溫度 | 頻率 | 型錄 |
|---|---|---|---|---|---|---|
 |

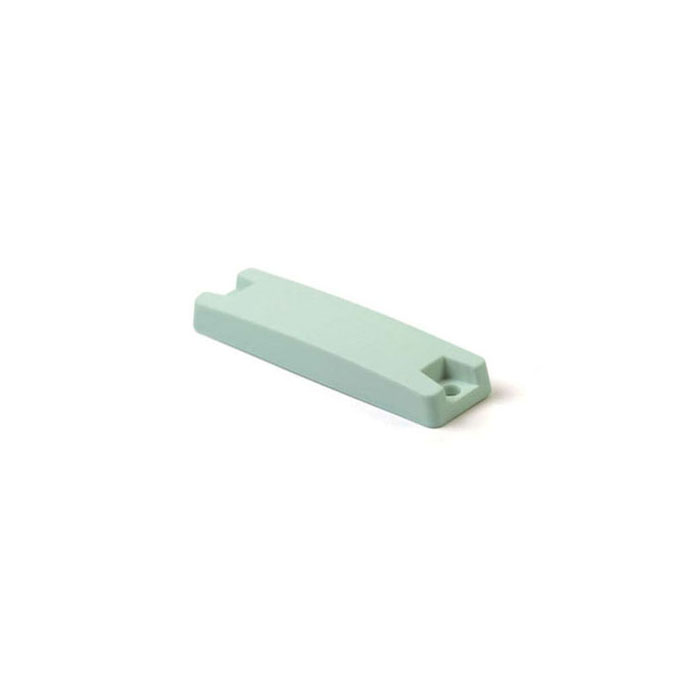

OPP087 | Impinj Monza R6-P EPC128bits , USER64bits, TID96bits |
87mm*24mm, T11mm | 操作溫度:-30~70℃, 儲存溫度:-30~70℃ | Global Frequency, 840MHz to 940MHz | 連結 |
 |

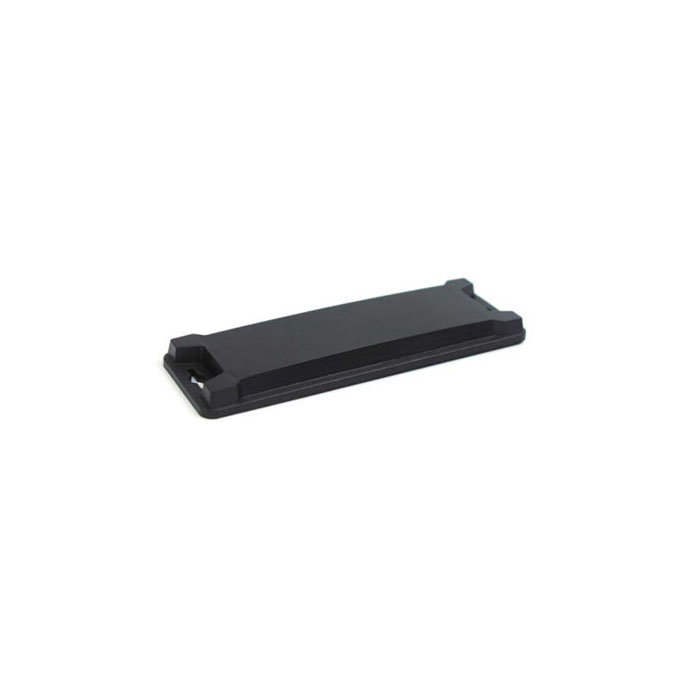

OPP130 | Alien Higgs-3 EPC 96bits (Up to 480bits) , USER 512bits, TID64bits |
130*42mm, T10.5mm | 操作溫度:-20~80℃, 儲存溫度:-30~100℃ | US 902~928, EU 865~868MHz | 連結 |
